Brand Name : DockFender
Model Number : DF-3.3Mx6.5M
Certification : PIANC, ISO17357
Place of Origin : China
MOQ : 1 Unit
Price : USD 220 to 2700 Per Piece
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 660 Pcs Per Month
Delivery Time : 6 Work Days
Packaging Details : Wooden Pallets, Wooden Cases
Product Name : Ship Wharf Yokohama Pneumatic Air Block Fender 3.3Mx6.5M Marine Berthing
Material : High Density NR
Standard : ISO17357-1:2014
Diameter : 500mm-4500mm
Length : 1000mm-12000mm
Initial Pressure : 50kPa / 80kPa
Warranty : 36 Months
Packing : Bare Packing, Frame Packing, Pallet Packing
Ship Wharf Yokohama Pneumatic Air Block Fender 3.3Mx6.5M Marine Berthing
Description
Reliant on the compressive elasticity of air, Yokohama pneumatic fenders show no deterioration or variation in performance due to fatigue or extremely low temperatures (-50°C and below) thereby negating the need for owners to make regular replacements.
Installation is simple and inexpensive, as the fender is supported by its own weight in the water. As such, it can be moored easily by means of a guy rope or chain, and can be removed with ease for transfer to another mooring point.
DockFender is a professional manufacturer and supplier of marine rubber fenders, we offer pneumatic fenders in various sizes and standard or high-pressure versions. Smaller fenders can be provided as a hook type. Larger fenders are usually equipped with chain tire nets to provide additional protection. They are extremely resistant to pressure and cuts, and can withstand wear and tear in harsh weather conditions, which means they are very suitable for harsh marine environments.
Place of Origin | China |
Brand Name | DockFender |
Model Number | DF-3.3Mx6.5M |
Type | Tyre Chain Net |
Working Pressure | 50kPa and 80kPa |
Safety Valve | Included |
Processing Service | Moulding, Cutting |
Material | Natural Rubber |
Product Name | Ship Wharf Yokohama Pneumatic Air Block Fender 3.3Mx6.5M Marine Berthing |
Application | Industrial, Marine, Dock, STS |
Color | Black |
Size | Customer's Requirements |
MOQ | 1 |
Advantage | Marine Safety |
Package | Plastic Bag Packing + Pallet |
Payment Term | T/T, L/C |
Specifications
Normal Size | Inner Pressure: 50Kpa 60% deflection | Inner Pressure: 80Kpa 60% deflection | |||||
Diameter | Length | Reaction Force | Energy Absorption | Hull Absorption | Reaction Force | Energy Absorption | Hull Absorption |
mm | mm | kN | kNm | kPa | kN | kNm | kPa |
500 | 1000 | 64 | 6 | 132 | 85 | 8 | 174 |
600 | 1000 | 74 | 8 | 126 | 98 | 11 | 166 |
700 | 1500 | 137 | 17 | 135 | 180 | 24 | 177 |
1000 | 1500 | 182 | 32 | 122 | 239 | 45 | 160 |
1000 | 2000 | 257 | 45 | 132 | 338 | 63 | 174 |
1200 | 2000 | 297 | 63 | 126 | 390 | 88 | 166 |
1350 | 2500 | 427 | 102 | 130 | 561 | 142 | 170 |
1500 | 3000 | 579 | 152 | 132 | 731 | 214 | 174 |
1700 | 3000 | 639 | 191 | 128 | 840 | 267 | 168 |
2000 | 3500 | 875 | 308 | 128 | 1150 | 430 | 168 |
2500 | 4000 | 1381 | 663 | 137 | 1815 | 925 | 180 |
2500 | 5500 | 2019 | 943 | 148 | 2653 | 1317 | 195 |
3300 | 4500 | 1884 | 1175 | 130 | 2476 | 1640 | 171 |
3300 | 6500 | 3015 | 1814 | 146 | 3961 | 2532 | 191 |
3300 | 10600 | 5121 | 3090 | 171 | 6612 | 4294 | 220 |
4500 | 7000 | 4660 | 3816 | 186 | 5866 | 4945 | 233 |
4500 | 9000 | 5747 | 4752 | 146 | 7551 | 6633 | 192 |
4500 | 12000 | 7984 | 6473 | 154 | 10490 | 9037 | 202 |
Features
1. Vast energy absorption with low unit surface pressure.
2. Easy to install and low maintenance requirement.
3. Good performance on inclined berthing.
4. Low hull pressures.
5. Comply with the requirements of ISO 17357, ensuring high performance and high quality.
6. Reputable global marine third party inspection options available.
Applications
● In ports with extreme tidal variations
● Ship-to-ship lightering operations
● Oil & Gas (typically FSRU)
● Temporary berthing
Advantages
◆ ISO17357 standard guidelines ensure superior product quality.
◆ High precision design engineering & advanced manufacturing processes.
◆ Professional technical advice & engineering support.
◆ Reputable global marine third party inspection options available.
◆ Suitable for various ship-to-quay and Ship-to-Ship applications with different sizes available.
![]() |

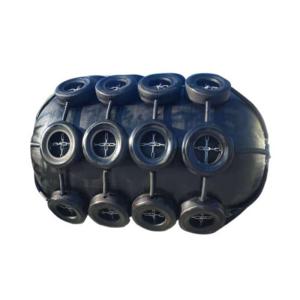

Ship Wharf Yokohama Fender Pneumatic Air Block 3.3mx6.5m Marine Berthing Images |
